Product Details
- Product Name: Band knife cutting machine
- Product Details:Mak 900 Standard Model
- ARM Length: 900 mm
- Table Size: 2100 x 1500
- Blade Size: 3860 x 10 x 0.45
- Cutting Capacity: 220 mm
- Power: 750 watts 3 phase
- Motor Speed: 2800 RPM
Product Details

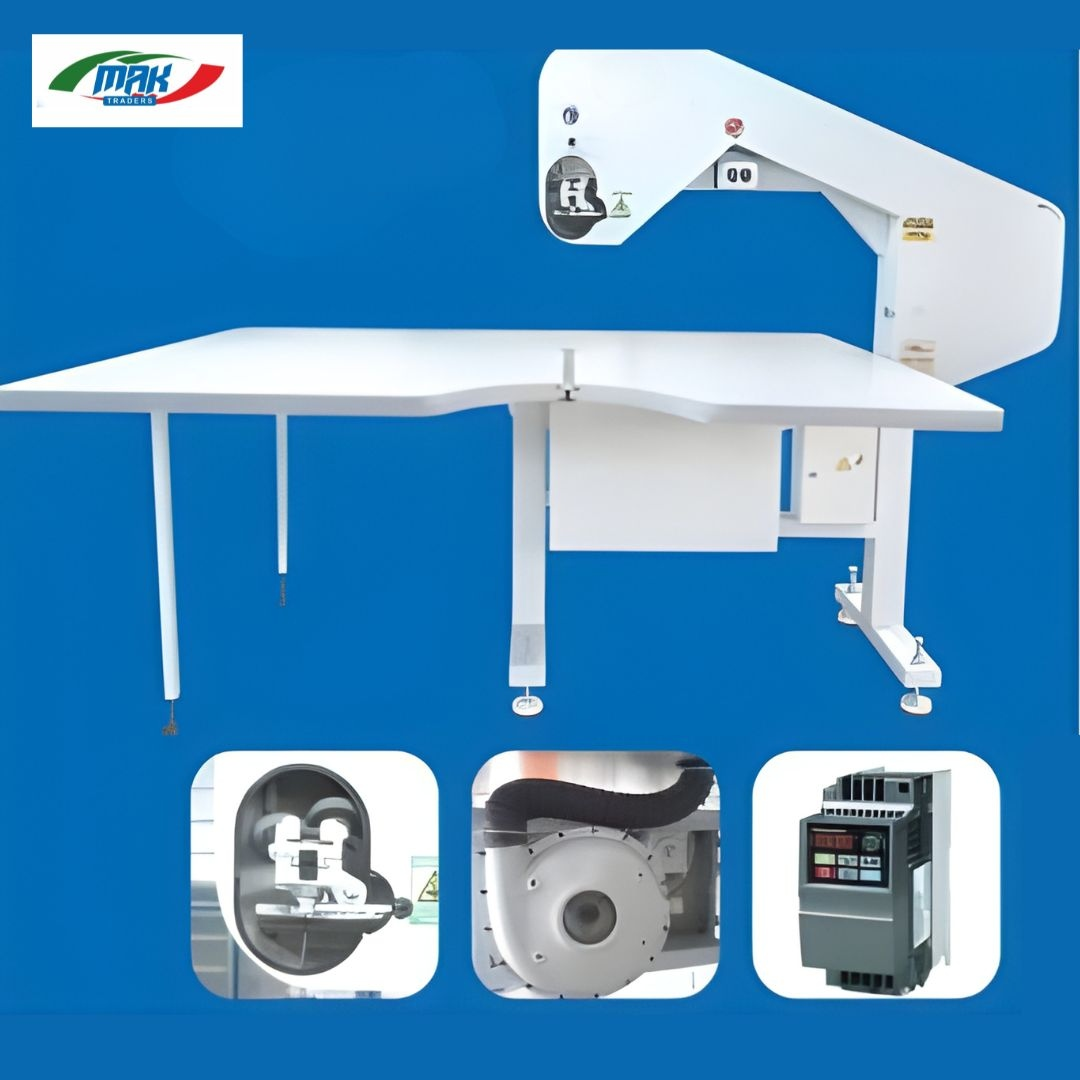

- Product Name: Band knife cutting machine
- Product Details:Mak 901 Variable Speed Model
- ARM Length: 900 mm
- Table Size: 2100 x 1500
- Blade Size: 3860 x 10 x 0.45
- Cutting Capacity: 220 mm
- Main Motor: 380V - 750W - 1440 RPM
- Blower Motor: 210V - 380W - 2880 RPM
Product Details
- Product Name: Auto-Strib Cutting Machine
- Product Details: Mak 300 Standard Model
- Speed / RPM: 50 - 400 RPM
- Power: 220 V
- Fabric Length: 57"(145 cm)
- Fabric DIA: 14-40(DIA)
- STRIB WIDTH: 10-100 mm
- Cutting Capacity: 1 Rol / 60 Sec
- Special Inculatus: Speed Controller
- Knife Safety: Silicon Pack
Product Details
- Product Name: Auto-Strib Cutting Machine
- Product Details: Mak 600 High Speed Model
- Speed / RPM: 50 - 750 RPM
- Power: 220 V
- Fabric Length: 57"(145 cm)
- Fabric DIA: 14-40(DIA)
- STRIB WIDTH: 10-100 mm
- Cutting Capacity: 1 Rol / 35 Sec
- Special Inculatus: Inverter
- Knife Safety: Silicon Pack
Product Details

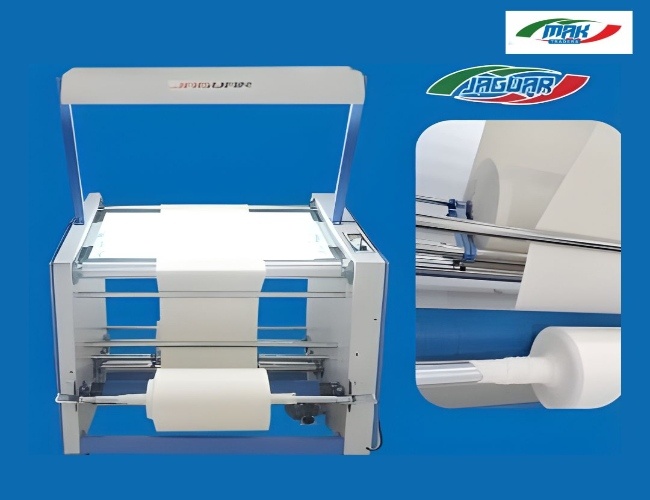

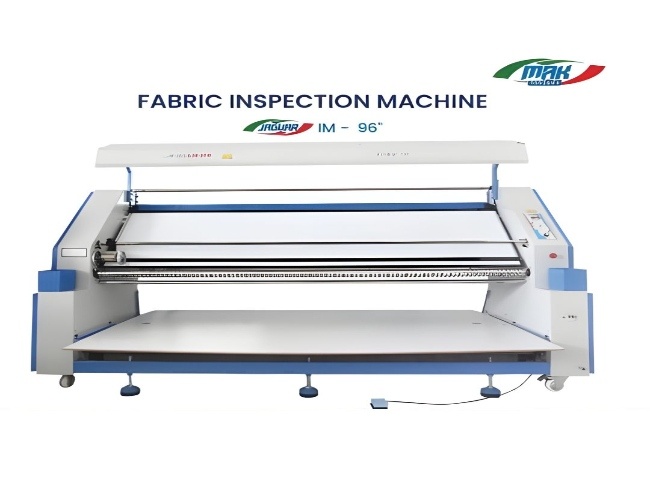

- Product Name: Fabric Inspection Machine
- Product Details: Suitable For Dyed Knitted, Tabular & Woven
- Dimension - (W x L x H)mm: 72" Inch Model (1000 x 2400 x 1500), 96" Inch Model (1000 x 2950 x 1500)
- Power Supply: 220 V / 50 - 60 Hz, Single Phase AC Suppply
- Speed: 0-80-yard/min
- Drive: AC Drive: 1Hp - 1No; 0.5Hp - 1No
- Motor Specifications: 1Hp (0.75 Kw - 4 Pole) - 1No, 05Hp (0.37 Kw - 4 Pole) - 1No
- Net Weight: 500 kg (approx)
Product Details
- Product Name: Edge Alignment Machine
- Dimension - (W x L x H)mm: 2450 x 2695 x 1870
- Power Supply: 220 V / 50 - 60 Hz, Single Phase AC Suppply
- Speed: 0-100-yard/min
- Drive: AC Drive: 1Hp - 3No
- Motor Specifications: 1Hp (0.75 Kw - 4 Pole) - 3No
- Net Weight: 320 kg (approx)
Product Details

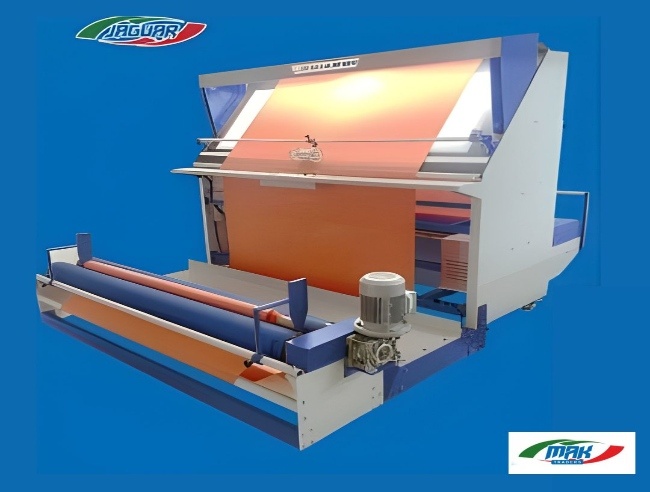

- Product Name: Tubular Grey Fabric Inspection Machine 40" - 60"
- Dimension - (W x L x H)mm: 1080 x 1715 x 1820
- Power Supply: 220 V / 50 - 60 Hz, Single Phase AC Suppply
- Speed: 0-75 meters / min
- Drive: AC Drive: 0.5Hp - 1No
- Motor Specifications: 1Hp (0.37 Kw - 4 Pole) - 1No
- Net Weight: 120 kg (approx)
Product Details

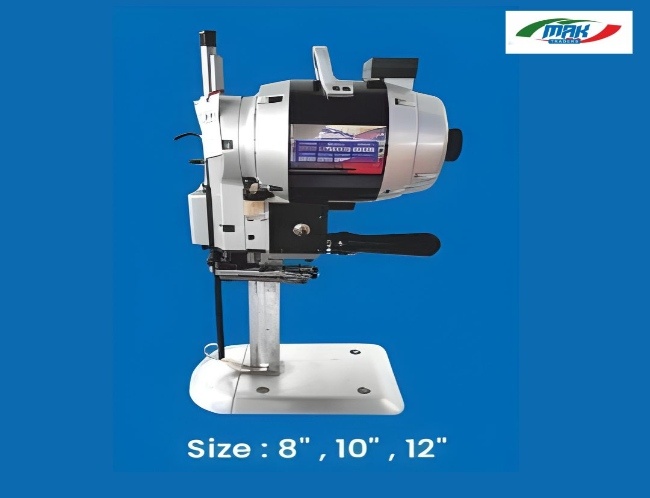

- Product Name: Straight Knife
- Size: 8, 10, 12
Product Details

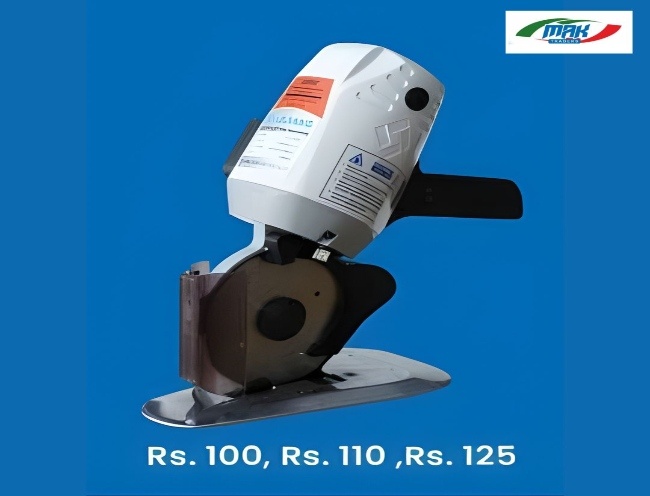

- Product Name: Round Cutter
- Rs: Rs. 100, Rs. 110, Rs. 125
Product Details

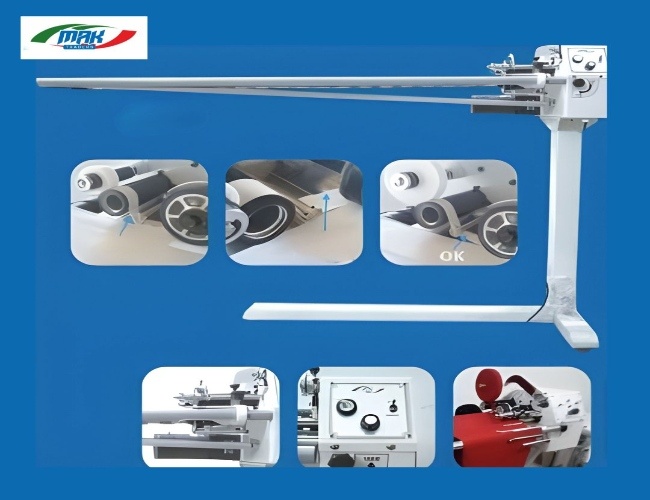

- Product Name: End Cutting Machine
- Voltage: 110 - 220 v (Single - Phase)
- Power: 160 W - 200 W
- Blade Speed (RPM): 18,000 - 20,000 RPM
- Track Length: 2.2 m - 2.4 m (86 - 96 in)
- Cutting Length: 190 cm (74-96 in)
